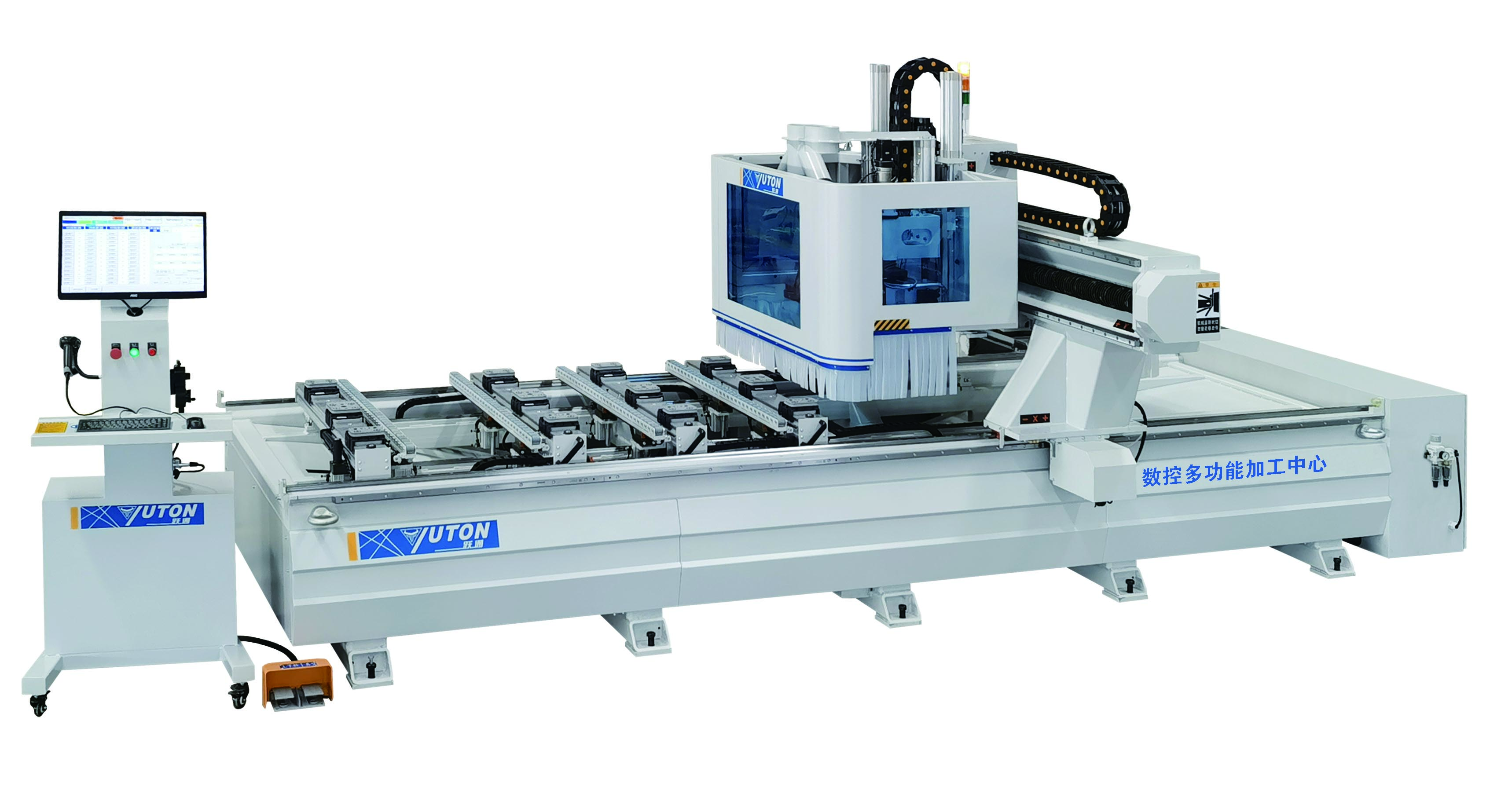

YD-S2030數控多功能加工中心
產品參數規格說明:

 功能:門扇五面加工。包括四邊鋸切、表面銑型、挖玻璃洞、鎖槽鎖孔、鉸鏈槽、司標槽、上下插銷槽、吊輪槽、定位槽、閉門器槽、油漆工藝孔、貓眼孔、企口靜音槽等的加工,也可用于門套板的定尺和五金孔槽位的加工。

Function:This machine can be used for processing five surfaces of door slab,the process include four edge cutting,surface engraving,window hole cutting,lock slot,hinge slot,logo slot,bolt slot,hanging wheel slot,positioning slot ,door closer slot milling,painting auxiliary hole & peep hole drilling.It can be also used for door frame cutting & hardware slot milling.

  • 適用性廣:門扇、門套的鋸切銑削加工;
  • 加工品質優:一次定位完成多工序加工;自動測量消除厚度誤差;正反旋銑削和主副鋸切不崩邊;
  • 操作方便:支持掃碼加工,自動換刀,可移動真空吸塊,流利條輔助橫向進出料。
  • Wide applicability:suitable for cutting & milling on both door slab & door frame;
  • High processing quality:multiple operation at one time clamping;automatic measure to eliminate thickness tolerance;main & scoring sawblade cutting,left & right spindle milling to avoid edge broken;
  • Easy operation:QR scanning is avaliable;automatic tool changing;Moveable vacuum absorb block;roller for auxiliary transverse feed in & feed out workpiece.

技術參數

最大工件長度 Max workpiece length               2600mm
最大工件寬度 Max workpiece width              1100mm
最大工件厚度 Max workpiece thickness               50mm
鋸切電機 Cutting motor               3.7+0.75kw
換刀電主軸(帶旋轉C軸)Tool changing spindle(with C axis)               8kw
總功率 Total power               18.5kw
外形尺寸 Overall dimensions                5300×2900×2250mm
重量 Weight                約4000kg
